A good vegetable garden design starts with three decisions: how wide to make your beds, how much sun the spot actually gets, and whether you’re planting in rows, raised beds, or containers. Get those three right and weeding, watering, and harvesting stay manageable all season. Get them wrong and you end up stepping on soil, dragging a hose past crowded plants, or watching tomatoes stretch sideways for light. This guide walks through the bed and path dimensions used by university extension services, sun requirements by crop type, and what it actually costs to build beds versus buy pots. If you’ve never grown vegetables before, read starting a vegetable garden from scratch first, then come back here to plan the layout itself.
Choosing a vegetable garden design: beds, rows, or containers
Every vegetable garden design fits into one of three basic formats, and most yards end up mixing two of them. Raised beds, in-ground rows, and containers each behave differently, and the right choice depends on your soil, your available space, and how much bending you want to do.

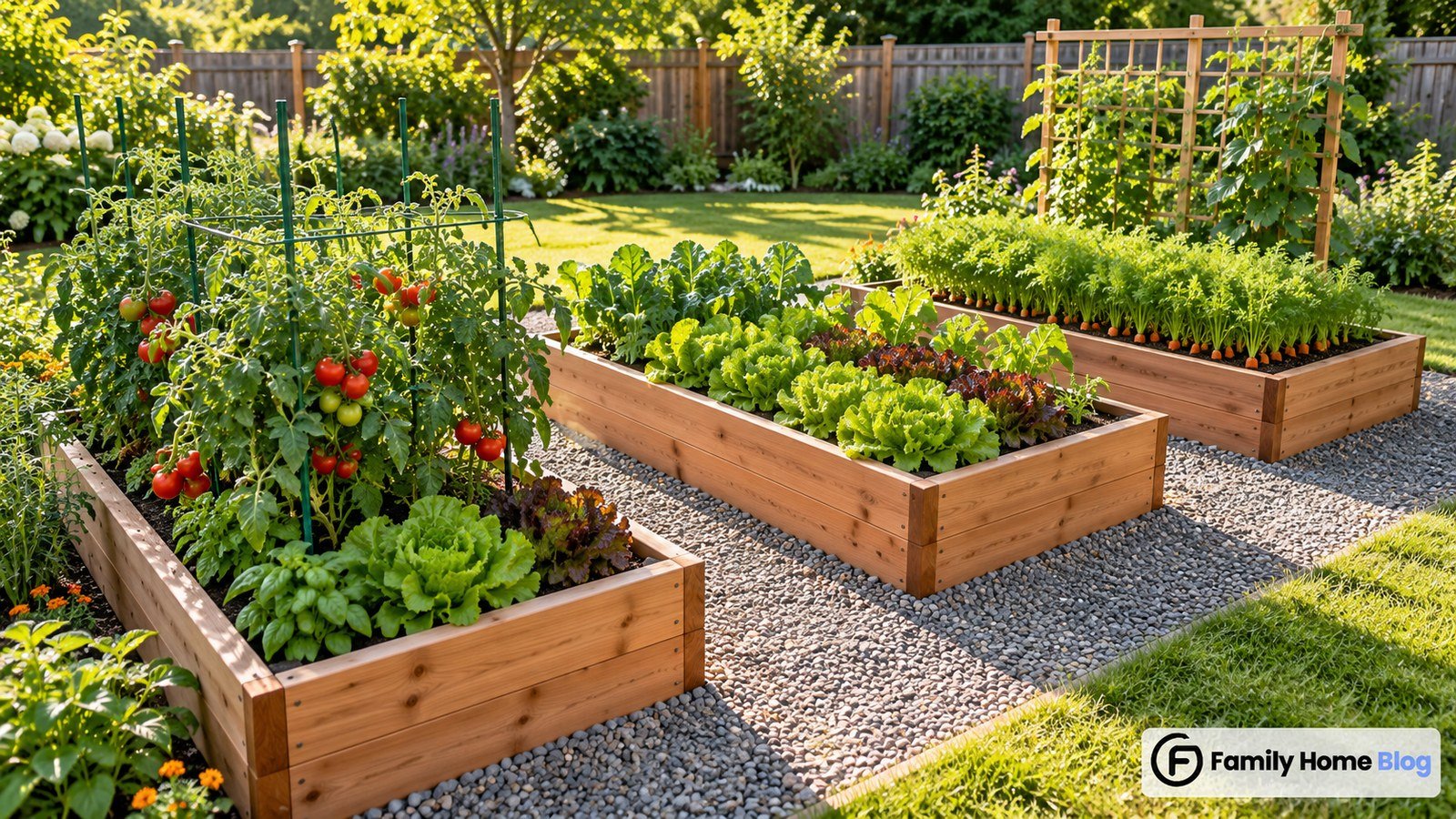

Raised beds
A raised bed is a framed, above-ground planting area filled with a soil mix instead of your yard’s native dirt. Colorado State University Extension recommends keeping beds around 4 feet wide, since the average adult can comfortably reach about 2 feet in from either side without ever stepping on the growing soil. Oklahoma State University Extension gives the same 4-foot figure, with a couple of exceptions: a bed dedicated to tomatoes can run 24 to 36 inches wide, and one planted mostly in beans or peas can be as narrow as 24 inches. Height matters too. CSU Extension calls for a minimum of 4 inches to define the growing area, and 8 to 12 inches when the native soil underneath is poor or compacted. Beds built 18 to 24 inches tall work well if you garden from a seated position or use a wheelchair.
Traditional in-ground rows
Straight rows dug directly into tilled soil are still the simplest layout for larger yards. Purdue University Extension‘s row-spacing chart runs from 1 foot apart for beets, carrots, leaf lettuce, onions, peas, radishes, spinach, and turnips, up to 6 feet apart for winter squash, pumpkins, and watermelon vines that sprawl. Within a row, plant spacing follows the same pattern: about 1 inch apart for peas and radishes, and as much as 72 inches for pumpkins and winter squash. Rows suit larger, open yards better than raised beds do, since the wider row spacing needed for sprawling crops loses its point once space runs short and you need to walk equipment or a loaded wheelbarrow between beds.
Container and pot gardens
Containers make the most sense for patios, balconies, and rented homes without a yard. University of Maryland Extension sets minimum sizes by plant category: large, fruiting vegetables like tomatoes, peppers, and eggplant need 8 to 10 gallons of growing media and 12 to 16 inches of depth, one plant per pot. Dwarf tomato and pepper varieties can get by with 4 to 6 gallons and 8 to 12 inches of depth. Small crops such as herbs, greens, and radishes only need 1 to 3 gallons and 4 to 6 inches of depth. Potatoes are the outlier at 30 gallons per container. For a closer look at pot styles and materials, see our guide to large planter pots.
How much sun your layout needs
Sun access should decide your layout before bed shape does. Purdue Extension states that most vegetables need a minimum of 6 hours of direct sunlight daily to produce well. The University of California’s Master Gardener program in Placer County breaks that down further: full-sun, fruit-bearing crops such as tomatoes, peppers, melons, and squash do best with 8 to 10 hours and rarely succeed below 6. Root vegetables, including radishes, beets, carrots, broccoli, Brussels sprouts, and cauliflower, can produce with as little as 4 hours. Leafy greens like lettuce, spinach, kale, arugula, chard, and mustard greens are the most shade-tolerant, getting by on as little as 3 hours, though the leaves grow thinner and slower in that light. Track the sun across your yard for a full day before you finalize anything; a spot that looks bright at noon can sit in shadow by 3 p.m. once nearby trees have leafed out.
Planning your layout, step by step
- Track the sun for one full day. Note when each area gets direct light, from sunrise to sunset, ideally in late spring once trees have fully leafed out.
- Call 811 before you break ground. The national 811 service asks homeowners to call a few business days ahead of any digging so buried utility lines get marked, per 811beforeyoudig.com.
- Sketch the space to scale on grid paper, one square per foot, and mark permanent features like fences, downspouts, and trees that cast shade.
- Set bed width first, using the 4-foot standard from CSU Extension, then work outward to fit the square footage you actually have.
- Add paths at 18 to 24 inches so you can push a wheelbarrow or garden cart through without brushing the plants on either side.
- Place tall crops on the north or west side, such as pole beans, corn, and staked tomatoes, so they don’t shade shorter plants behind them.
- Leave a third of each bed unplanted until midsummer for a second round of fast crops like lettuce, radishes, or bush beans.
Bed, row, and container dimensions compared
The table below lines up the three formats side by side, using the sources cited throughout this guide.
| Format | Width or size | Depth | Path or spacing | Best for |
|---|---|---|---|---|
| Raised bed | 4 ft wide (24-36 in for a tomato-only bed) | 4-12 in, or 18-24 in for accessible beds | 18-24 in wide paths | Poor native soil, small yards, less bending |
| In-ground row | Row length as needed | Soil worked 6 in deep | 1-6 ft between rows by crop | Larger yards, sprawling crops like squash |
| Square-foot bed | 4 ft by 4 ft (16 sq ft) | About 6 in of growing mix | 3-12 in between plants by size | Small yards, high yield per square foot |
| Container | 8-10 gal for tomatoes/peppers; 1-3 gal for greens | 12-16 in for large veg; 4-6 in for greens | One large plant per pot | Patios, balconies, rentals |
What a vegetable garden design costs to build
Material choice drives cost more than size does. Cedar and redwood resist rot naturally but cost more than pine; composite lumber costs more upfront but doesn’t need replacing every few years. Modern pressure-treated lumber uses micronized copper azole rather than the older chromated copper arsenate that was phased out of residential use in 2004, and University of Maryland Extension notes it’s considered low in toxicity, with copper elevation limited to within 1 inch of the bed’s edge and no detectable copper increase in the plants grown inside.
On the dollar side, Angi’s 2026 cost data puts professional flowerbed and raised-bed installation at $1,000 to $3,000, averaging around $2,000, or roughly $10 to $20 per square foot including materials and labor. Building your own raised bed frame typically runs $200 to $1,500 in lumber and soil, depending on size and whether you fill it with bagged soil or bulk compost. Budget separately for edging, which runs $1 to $25 per linear foot, and for topping up beds with fresh organic matter each spring; our guide to composting for garden soil covers a cheaper way to build that soil yourself. Costs vary by region and by whether you hire a landscaper or build the frame yourself, so treat these figures as planning ranges rather than quotes.
Where vegetable garden design plans go wrong
A few repeated errors show up in almost every backyard layout.
- Building beds wider than 4 feet, which forces you to step on the soil and compact it every time you weed.
- Skipping a full-day sun check and placing beds where trees or the house shade the ground by early afternoon.
- Leaving paths narrower than 18 inches, which makes hauling a wheelbarrow or garden cart nearly impossible.
- Choosing a container that’s too small, then wondering why a tomato in a 3-gallon pot never sets fruit.
- Planting tall crops on the south side, where they shade everything behind them for the rest of the season.
- Ignoring mature plant spacing and crowding seedlings that look tiny at planting time but need real room by midsummer.
Our tips for a successful vegetable garden cover several of these same pitfalls in more depth, along with watering and feeding schedules. It’s also worth reading up on natural pest control methods before you plant, since a well-spaced layout still needs a plan for insects.
Safety and permits before you dig
Two safety steps apply no matter which layout you build. First, call 811, the free national call-before-you-dig service, a few business days before breaking ground for beds, edging, or an irrigation line; a dispatcher sends locators to mark buried gas, electric, and water lines with paint or flags, according to 811beforeyoudig.com. Skipping this step risks striking a line, which can cause injury or an expensive utility repair. Second, check with your city or HOA before building a raised bed taller than about 24 inches or adding a permanent structure like a fence or trellis system; some municipalities regulate front-yard vegetable gardens or require a permit for beds above a certain height. If you’re using older salvaged lumber, avoid anything that might be treated with chromated copper arsenate or creosote, both discouraged for food-growing beds; when you’re unsure about a material, a local extension office can help identify it or suggest a liner. For a gentler layout that leans on perennials instead of yearly rebuilding, our low-maintenance garden ideas pair well with a vegetable bed nearby.
Questions homeowners ask
How wide should a vegetable garden bed be?
Most raised and in-ground beds work best at about 4 feet wide, since that lets an average adult reach the center from either side without stepping on the soil, according to Colorado State University Extension. Exceptions apply for single crops: a bed dedicated to tomatoes can be as narrow as 24 to 36 inches, and one for beans or peas can run about 24 inches wide. Wider beds compact the soil every time you weed or harvest from the middle.
How much sun does a vegetable garden need?
Most vegetables need at least 6 hours of direct sun a day, per Purdue University Extension. Fruiting crops such as tomatoes, peppers, and squash do best with 8 to 10 hours, according to the University of California’s Master Gardener program. Root vegetables can manage with about 4 hours, and leafy greens like lettuce and spinach can produce on as little as 3 hours, though growth slows and leaves stay thinner in lower light.
What is the cheapest way to build a vegetable garden?
In-ground rows dug directly into existing soil cost the least, since they skip lumber and bagged soil mix entirely. If you want a raised bed instead, building your own frame typically runs $200 to $1,500 in materials, well under the roughly $2,000 average for hiring a professional installer, according to Angi’s 2026 cost data. Reusing bricks, concrete blocks, or scrap lumber for the frame can push the cost lower still.
How far apart should vegetable garden rows be?
Row spacing depends on the crop. Purdue University Extension’s planting chart calls for 1 foot between rows of beets, carrots, lettuce, onions, peas, and spinach, and up to 6 feet between rows of winter squash, pumpkins, or watermelon. Tomatoes and peppers generally need about 3 feet between rows. Check a row-spacing chart for your specific vegetables before laying out the garden, since spacing that’s too tight cuts yields and airflow.
What size container do vegetables need?
It depends on the plant. University of Maryland Extension recommends 8 to 10 gallons of growing media and 12 to 16 inches of depth for one tomato, pepper, or eggplant. Dwarf varieties can use 4 to 6 gallons instead. Herbs, greens, and radishes only need 1 to 3 gallons and 4 to 6 inches of depth, while potatoes need a much larger 30-gallon container to develop properly.
Start your layout with a sun map and a tape measure, not a shopping list. Once you know how many hours of direct light each spot gets and how wide your beds can actually be, the rest follows fairly easily: paths at 18 to 24 inches, rows spaced to the crop, containers sized to the plant. Sketch it on paper first, confirm you don’t need a permit or a call to 811, and build only as many beds as you can realistically weed and water each week. A smaller vegetable garden design that gets tended consistently will out-produce a sprawling one that gets ignored by July.
